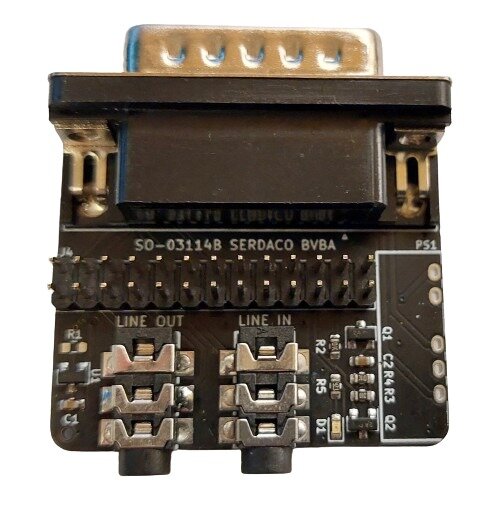

Adapter which allows plugging your DreamBlasterX2,S2,.. modules to the MIDI/Gameport of your soundcard. New edition, with MIDI activity LED
Works on any soundcard that has the MPU401 MIDI interface and a gameport. Tested on SoundBlaster Live.
Connectors : - 15 pins male gameport connector : plugs on the MPU401/MIDI gameport - Waveblaster header for S2, E-Wave and X2GS modules. (5V only). - 3.5mm stereo line out - 3.5mm stereo line in (for X4 only) - optional +12V/-12V DC/DC module for classic waveblaster support (for example yucatan, XR385,.. ) --> red pcb version
Review :
Demo:

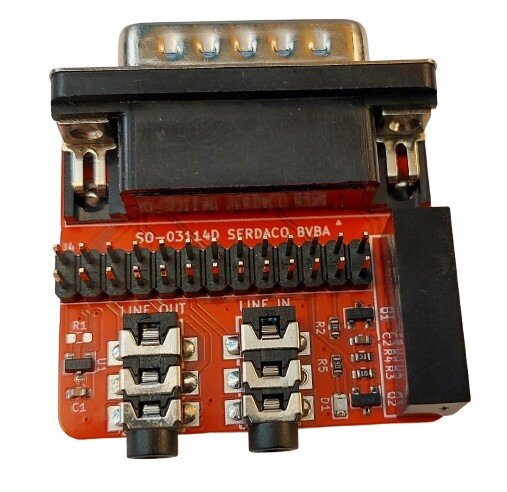

Chill 'n Phil legacy support version, hosting XR385:
