MIDI THRU BOX

MIDI THRU BOX

€32,67 EUR
€32,67 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
MIDI THRU assembly options:
MIDI THRU Enclosure :
High quality MIDI THRU box features :
  • Dual power options :
    • mini USB 5V power inout
    • 9V DC barrel input  (range 7V - 13V), center negative, 2.5mm x 5.5mm plug
  • 1 x MIDI IN, properly optically isolated
  • 4 x MIDI OUT
  • MIDI activity LED and Power LED
  • Available as through hole solder kit and presoldered + tested board
  • High quality enclosure option

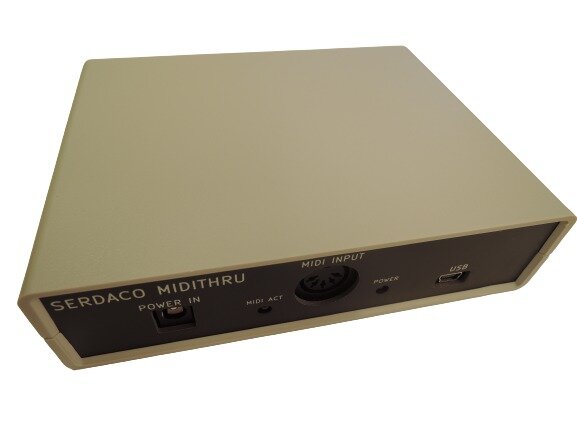

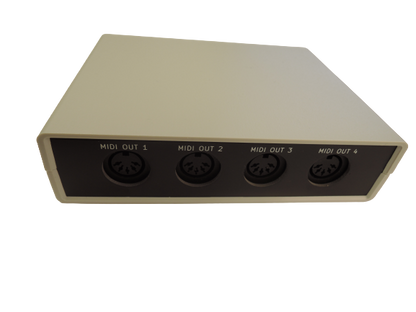

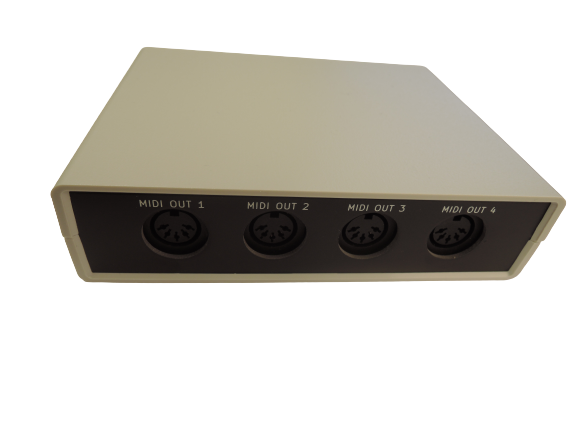

MIDI THRU enclosure:



MIDI THRU Easy Solder Kit :

Only need to solder the through hole connectors and leds

MIDI THRU Kit

Solder kit instructions :
  • Solder all connectors.
  • Pay special attention to the LEDs
    • if intending to build into enclosure, leave 7mm legs to allow to bend properly
    • respect LED polarity (see reference below)
Polarity LED

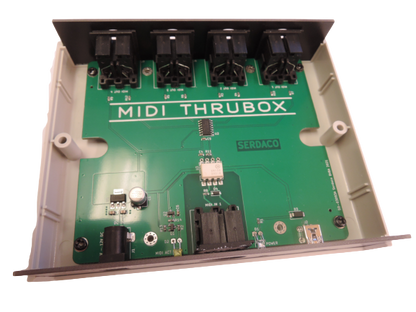

MIDI THRU PCB

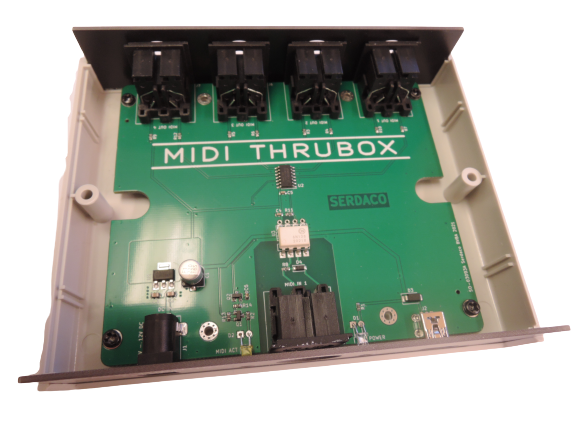

MIDI THRU in enclosure
