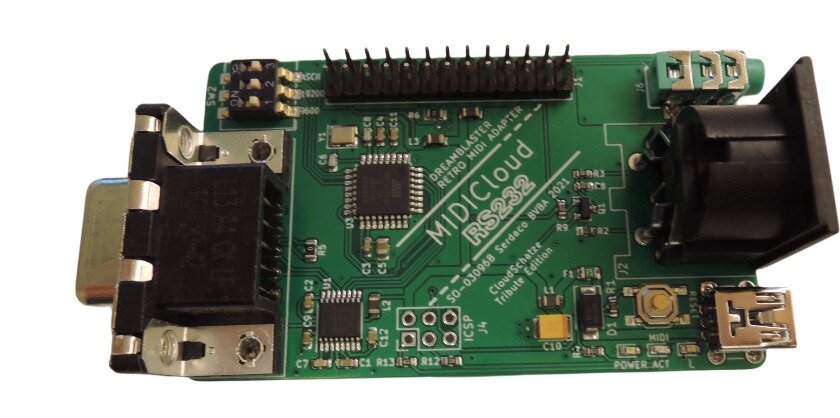

MIDICloud RS-232

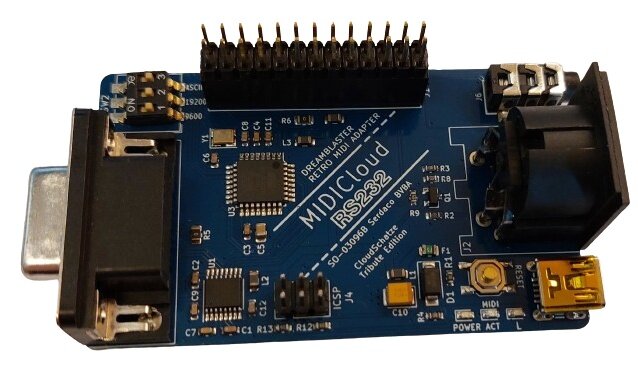

MIDICloud RS232 Waveblaster Adapter, 'CloudSchatze Tribute - Blue Edition'
Completely soldered, programmed and tested boards.

 RS232 to Waveblaster and MIDI interface, compatible with SOFTMPU

• high quality PCB
• fits on 9 pin serial port
• MIDI output DIN connector
• Waveblaster header for modern small waveblaster boards (McFly, S2,X2, X2GS, E-Wave)
• 5V supply through USB mini connector
• DIP switches for advanced settings

DIP positions :
DIP 3 :  OFF = binary mode, ON = ASCII mode
DIP 1 + 2 : baud rate selection

Baud Rate table	DIP 1 = OFF	DIP 1 = ON
DIP 2 = OFF	38400	9600
DIP 2 = ON	19200	4800

Usage with SoftMPU :
SoftMPU uses 38400 baud, binary mode.
--> Set all dips to OFF to use with SoftMPU. (this is the default state of the dips).
Set the output device of softmpu to your com port : for example :
SOFTMPU.EXE /MPU:330 /OUTPUT:COM1
