MPU-232

Completely soldered, programmed and tested boards.

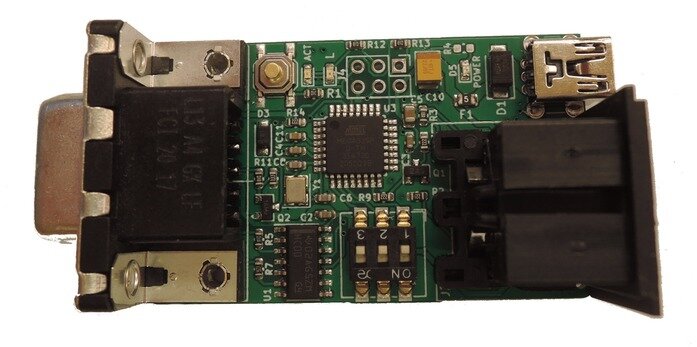

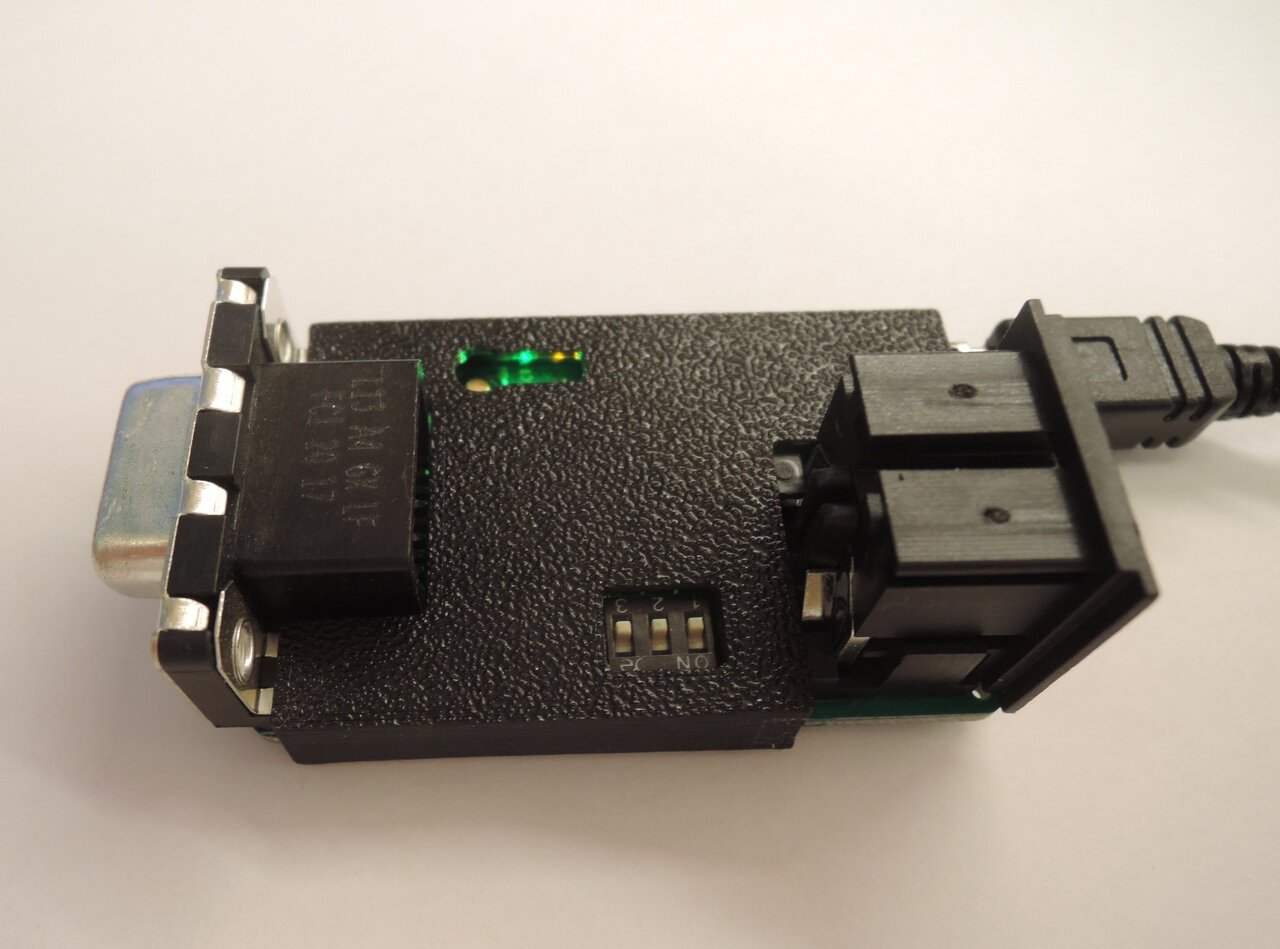

MPU-232 : RS232 to MIDI interface, compatible with SOFTMPU

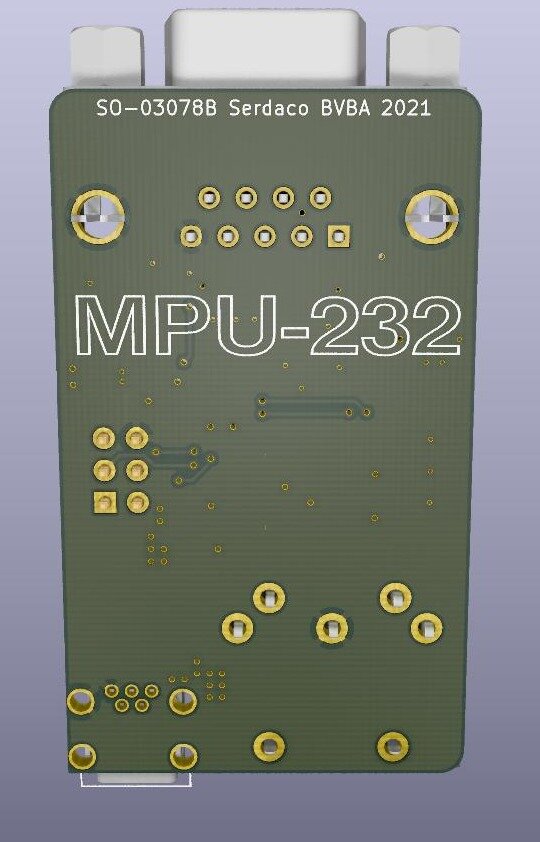

• small size, high quality PCB
• fits on 9 pin serial port
• MIDI output DIN connector
• 5V supply through USB mini connector
• DIP switches for advanced settings

DIP positions :
DIP 3 :  OFF = binary mode, ON = ASCII mode
DIP 1 + 2 : baud rate selection

Baud Rate table	DIP 1 = OFF	DIP 1 = ON
DIP 2 = OFF	38400	9600
DIP 2 = ON	19200	4800

Usage with SoftMPU :
SoftMPU uses 38400 baud, binary mode.
--> Set all dips to OFF to use with SoftMPU. (this is the default state of the dips).
Set the output device of softmpu to your com port : for example :
SOFTMPU.EXE /MPU:330 /OUTPUT:COM1

MPU-232 demo by Retro Erik :


Sam and Max Demo using SOFTMPU :

Reams of Chaos demo using SOFTMPU :

Demo by Retro Erik on XT :
