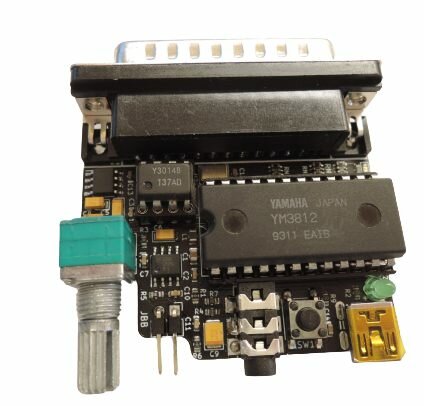

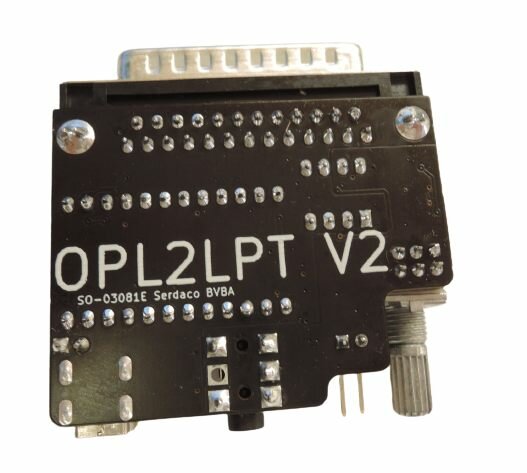

OPL2LPT V2

OPL2 'adlib' FM synthesis sound card for the parallel port.

if this is out of stock, have a look at OPL3LPT instead.

OPL2LPT :
  - fully assembled and tested parallel port sound card
  - includes the legendary Yamaha OPL2 chip
  - includes a headphone amp

Find information on previous edition here.

DOS game compatibility using the 'adlipt' project : download executables here : https://github.com/pdewacht/adlipt/releases/latest​

• TSR driver ADLIPT for 386+ machines :  https://github.com/pdewacht/adlipt/tree/master/adlipt
• DOS game patching utility (any processor, also 8086,80286) : https://github.com/pdewacht/adlipt/tree/master/adpatch
  which is compatible with the following games : https://github.com/pdewacht/adlipt/wiki/ADPATCH-Tested-Games
• OPLT2TEST testing utility (no driver) : https://github.com/pdewacht/adlipt/tree/master/opl2test

Downloads also available at http://serdaco.com/downloads/?dir=OPL2LPT


--- --- --- --- --- --- --- --- --- --- OPL2LPT/OPL3LPT is wired up to the following pins1: A0       ->  /Strobe   CTRL-02: D0      <->  Data03: D1      <->  Data14: D2      <->  Data25: D3      <->  Data36: D4      <->  Data47: D5      <->  Data58: D6      <->  Data69: D7      <->  Data716: /WR      ->  Init      CTRL-217: A1       ->  /Select   CTRL-3    (only for opl3lpt)--- --- --- --- --- --- --- --- --- ---

Get started with the patching tool, using the DOS GAME Demo Pack

Some videos of previous revision of OPL2LPT :







Here is an article by Vincent Bernat how to use OPL2LPT under linux, and comparison of DOS emulator performances. Here is the video where he compares on different DOS emulators





LPT devices comparison by Retro Erik:
